SMT handling
Board handling depends on dimensions, populated component clearance, orientation, and upstream/downstream signaling. The right unit must work with the actual line sequence and recovery procedures.
Selected equipment example

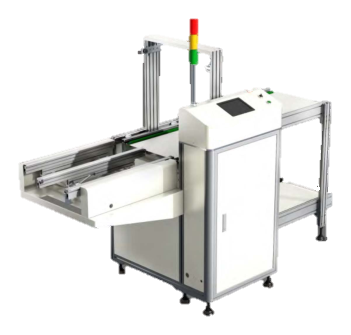

PCB auto stacker
Manage PCB flow between machines with loading, buffering, transfer, and unloading equipment.
- Control system
- PLC
- Lift increments
- 10 / 20 / 30 / 40 / 50 mm
- Alerts
- Audible and visual
Illustrative brochure specifications. Confirm the required configuration and acceptance conditions in the project quotation.
Application fit
Where to start
- Collecting finished boards at the end of an SMT line
- Connecting inspection, handling, and downstream processes
- Managing line interruption or OK/NG flow with the appropriate unit
Beyond the example
Examples in the portfolio include PCB loaders, stackers, buffers, flippers, transfer machines, and single- or dual-lane conveyors. Selection starts with the board and machine interfaces.
